模具加工能力
汉鼎厂房面积1500平方米，标准化一楼厂房。设备齐全从手板模型加工车间，精加工车间，模具加工组装车间，注塑生产车间以及无尘组装车间规划完整，各个车间部门通力协助保障每个客户所需需求。
手板模型加工车间配备设备：手板CNC精雕3台，腹膜机一台，喷砂机一台及配备独立无尘喷油房，及其他辅助设备。
精加工车间配备设备：加工中心三台，及其他辅助设备。
模具加工组装车间配备设备：普通铣床3台，深孔钻一台，线切割2台，精密花火机2台，精密磨床2台，CNC精雕一台，及其他辅助设备。
-

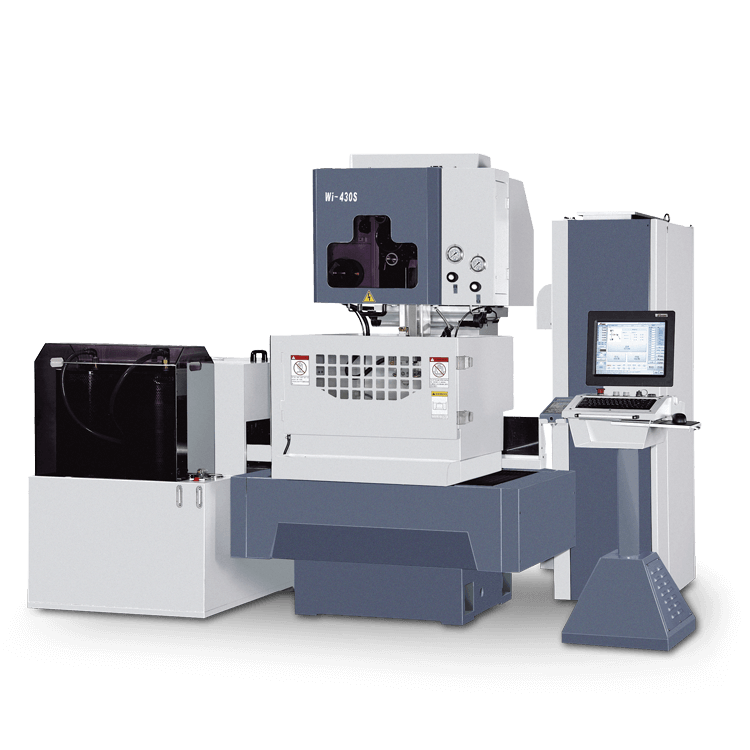

Maximum Workpiece Size (LxWxH)
870x540x295 mm
-
Wire Diameter Range
Ø 0.1~0.3 mm
-
Work Table Size
740x500 mm
-
Max. Taper Angle (°)Workpiece Thickness
±22.5 (100 mm)
-
Maximum Workpiece Weight
700 kgs
-
Maximum Axes Load
10 kgs
-
Drive & Servo
5 axes AC Servo
-
Conductivity
Automatic
-
Simulations Axis
X / Y / U / V (4 axes)
-
Water Tank Capacity
570 L
-
X/Y Axus Travel
500/ 300 mm
-
Net Weight
2450 kgs
-
Z Axis Travel
300 mm
-
Dimension (LxWxH)
3250x2200x2150
-
U/V Axis Travel
100/100 mm
-

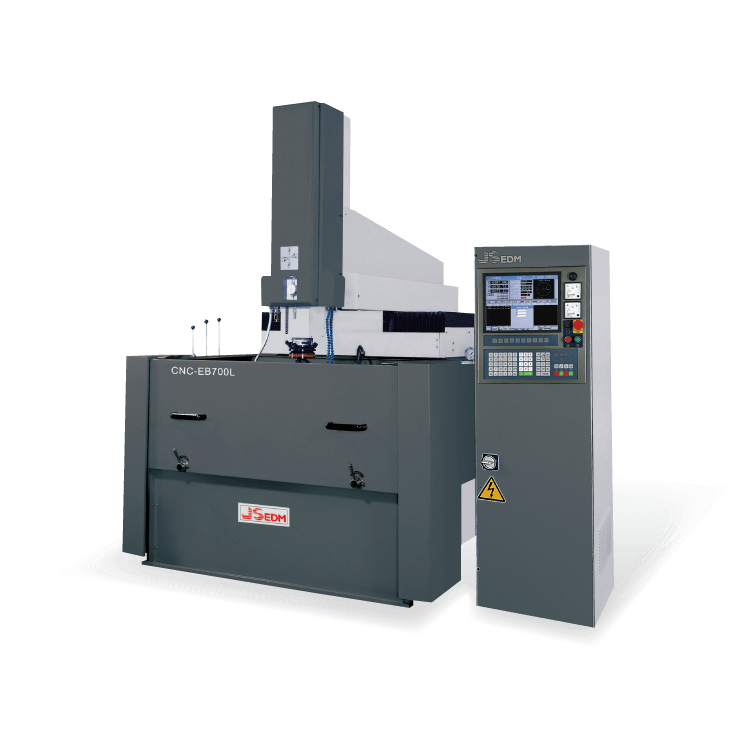

Capacity of Work Tank
1500x940x520 mm
-
Machine Outside Dimensions (WxDxH)
2850x2700x2610 mm
-
Work Table Size
1000x600 mm
-
Machine Weight
3600 kgs
-
Longitudinal Travel (X-Axis)
600 mm
-
Max. Machining Current
60 / 90 A (Optional)
-
Cross Travel (Y-Axis)
450 mm
-
Max. Power Input
7 / 10 KVA
-
Z Axis Travel (Z-Axis)
400 mm
-
Max. Machining Rate
400 / 600 mm3/min
-
Distance Between Platen to Table
350~750 mm
-
Min. Electrode Wear Ratio
0.12 %
-
Max. Electrode Weight
250 kgs
-
Best surface / Ra
Ra 0.2 μm
-
Max. Work Piece Weight
3000 kgs
-
Min. D. R. O. Resolution
0.001 mm
-
Fluid Tank Capacity
1100 L
-
Generator Weight
320 kgs
